PicoScope 9300 USB-PC采样示波器
Sampling Oscilloscopes to 25 GHz with TDR/TDT and Optical models
![](static/picture/compact-portable-usb-instruments.jpg)

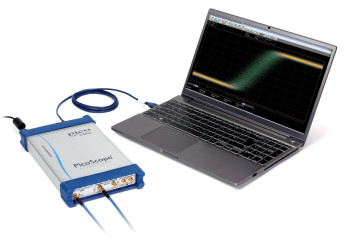

15 to 25 GHz electrical, 9.5 GHz optical, TDR/TDT, 2-channel and 4-channel, compact, portable, USB instruments.
These units occupy very little space on your workbench and are small enough to carry with your laptop for on-site testing, but that’s not all. Instead of using remote probe heads attached to a large bench-top unit, you can position the scope right next to the device under test. Now all that lies between your scope and the DUT is a short, low-loss coaxial cable. Everything you need is built into the oscilloscope, with no expensive hardware or software add-ons to worry about.
Key specifications
- 15 TS/s (64 fs) sequential sampling
- Up to 15 GHz prescaled, 2.5 GHz direct trigger and 11.3 Gb/s clock recovery
- Industry-leading 16-bit 1 MS/s ADC and 60 dB dynamic range
- Eye and mask testing to 16 Gb/s with up to 223–1 pattern lock
- Intuitive, touch-compatible Windows user interface
- Comprehensive built-in measurements, histogramming and editable data mask library
- Integrated, differential, deskewable TDR/TDT step generator
Typical applications
-
Telecom and radar test, service and
- manufacturing
- Optical fiber, transceiver and laser testing
- RF, microwave and gigabit digital system measurements
- Radar bands I, G, P, L, S, C, X, Ku
- Precision timing and phase analysis
- Digital system design and characterization
- Eye diagram, mask and limits test to 10 Gb/s
- Ethernet, HDMI 1, HDMI 2, PCI, SATA, USB 2.0, USB 3.0
- TDR/TDT analysis of cables, connectors, backplanes, PCBs and networks
- Optical fiber, transceiver and laser test
- Semiconductor characterization
PicoScope | 9301-15 | 9301-25 | 9302-15 | 9302-25 | 9311-15 | 9311-20 | 9321-20 | 9341-20 | 9341-25 |
---|---|---|---|---|---|---|---|---|---|
15 GHz sampling oscilloscope | tick | tick | tick | ||||||
20 GHz sampling oscilloscope | tick | tick | tick | ||||||
25 GHz sampling oscilloscope | tick | tick | tick | ||||||
2 channels | tick | tick | tick | tick | tick | tick | tick | ||
4 channels | tick | tick | |||||||
Clock recovery (11.3 Gb/s) | tick | tick | tick | ||||||
Optical input (9.5 GHz) | tick | ||||||||
Integrated TDR/TDT (60 ps / 2.5 to 7 V) | tick | tick |
